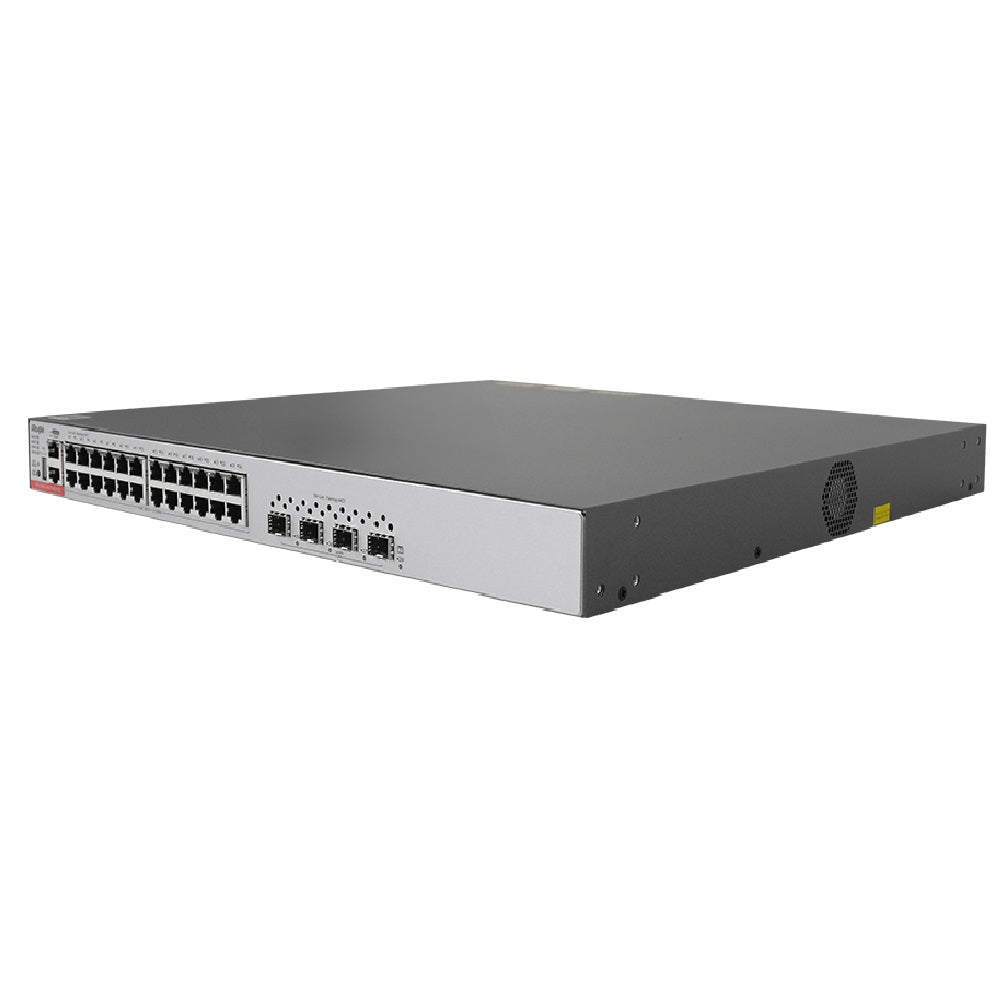

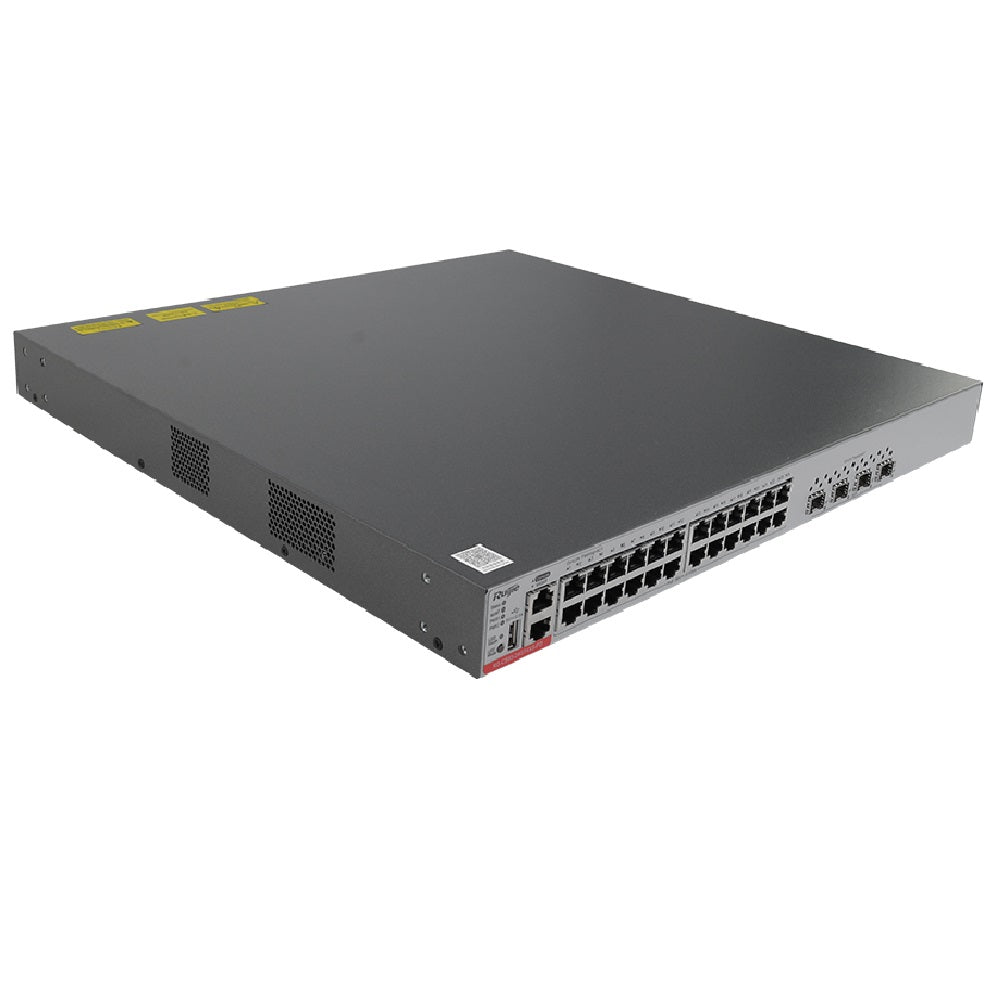

RUIJIE REYEE RG-CS83-24GT4XS-PD Switch 24 Puertos Gb 4SFP 10G 16PoE+ 370 W Cloud

Port Specifications

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

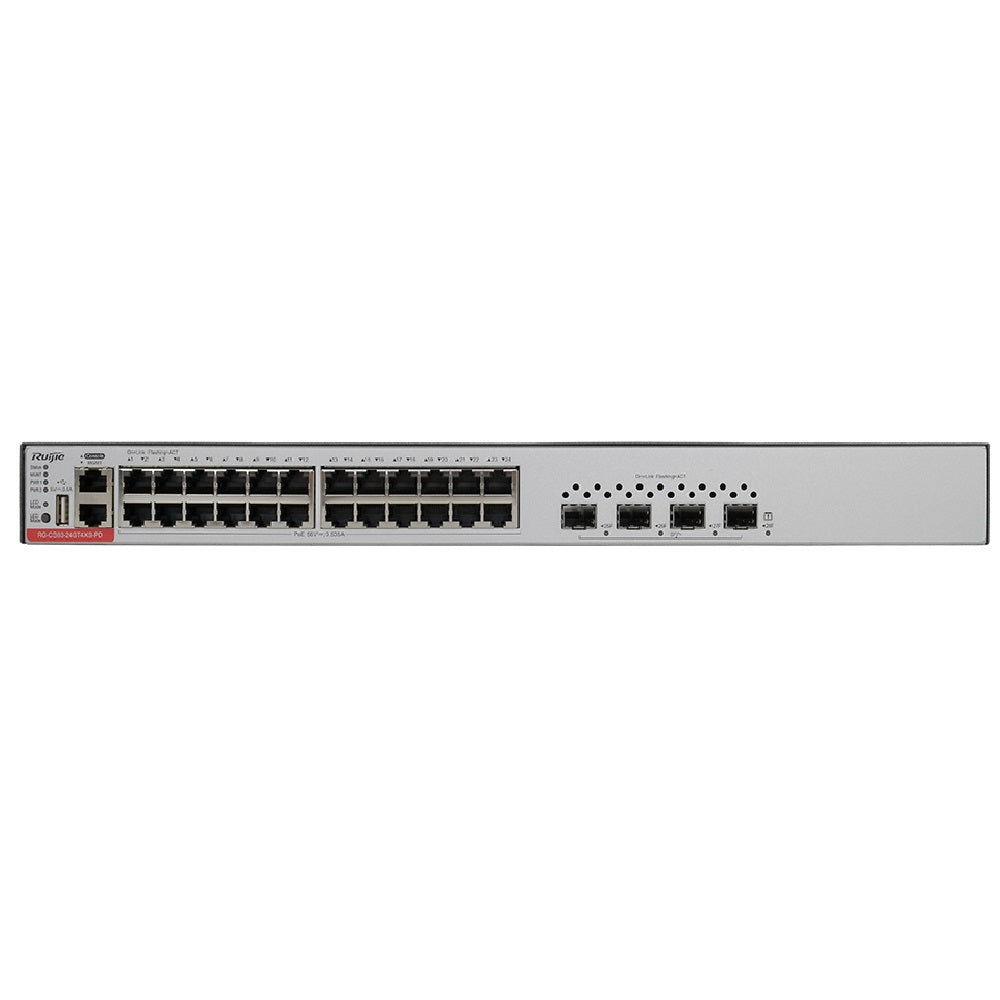

Fixed service port

24 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/10GE SFP+ ports

48 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/10GE SFP+ ports

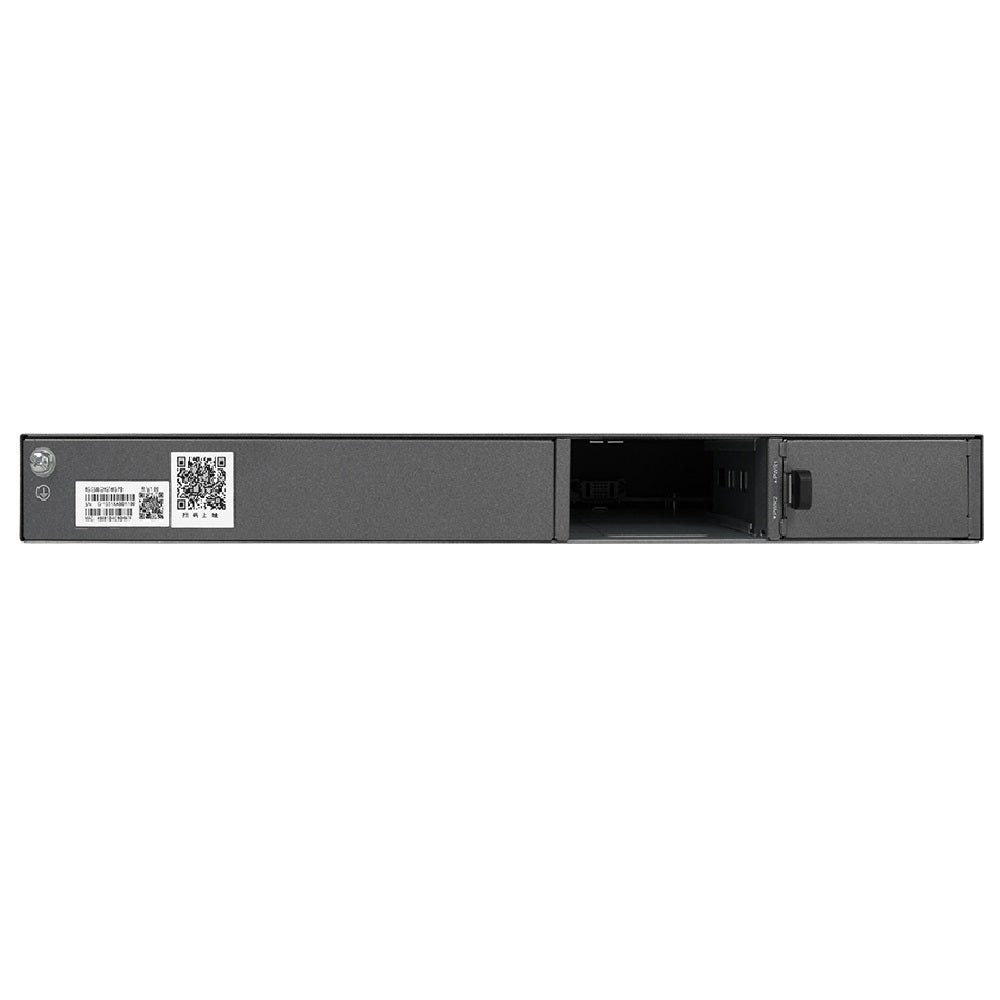

Module slot

2 x power module slots

Power module

RG-PA600I-P-F

RG-PA1000I-P-F

Fixed management ports

1 x RJ45 console port

1 x RJ45 MGMT port

USB

1 x USB port

System Specifications

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

Packet forwarding rate

96 Mpps

132 Mpps

Switching capacity

128 Gbps

176 Gbps

CPU

Dual-core CPU, each core with the clock speed of 1.2 GHz

BootROM

16 MB

Flash memory

2 GB

Memory

1 GB

Switch buffer

3 MB

MAC address table size

32,000

ARP table size

4,000

Number of IPv4 unicast routes

8,000

Number of IPv4 multicast routes

2,500

Number of IPv6 unicast routes

4,000

Number of IPv6 multicast routes

1,200

Number of ACEs

Ingress: 3,500

Egress:1,500

Number of VSU members

4

VLAN translation

4,094

Dimensions and Weight

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

Unit dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm (17.40 in.x 16.54 in.x 1.72 in.)

Shipping dimensions (W x D x H)

570 mm x 565 mm x 172 mm (22.44 in. x 22.24 in. x 6.77 in.)

Rack height

1 RU

Unit weight

4.3 kg (9.48 lbs)

4.6 kg (10.14 lbs)

Shipping weight

6.78 kg (14.95 lbs)

6.98 kg (15.39 lbs)

Power Supply and Consumption

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

Power supply

2 x pluggable power modules

Power module redundancy

For dual power supplies, 1+1 power redundancy is supported only when the total PoE load of the device is less than the PoE output power of a single power supply

Power input

RG-PA600I-P-F (AC input):

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 8 A

RG-PA1000I-P-F (AC input 1):

● Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz

● Maximum input current: 12 A

RG-PA1000I-P-F (AC input 2):

● Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 8 A

Maximum output power

RG-PA600I-P-F: 600 W

RG-PA1000I-P-F:

● 100 V AC to 130 V AC: 930 W

● 200 V AC to 240 V AC: 1000 W

Maximum power consumption

65 W (non-PoE)

810 W (full PoE load)

75 W (non-PoE)

1570 W (full PoE load)

PoE port

All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply

PoE power cable pairs

Mode A (1-2, 3-6 pairs)

PoE output power

Each PoE port provides up to 30 W of power

The maximum power depends on the configured power supply.

● 1 x RG-PA600I-P-F: 370 W

● 2 x RG-PA600I-P-F: 740 W; 1 x RG-PA1000I-P-F: 740 W; 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 720 W over 24 ports (30 W x 24)

Each PoE port provides up to 30 W of power

The maximum power depends on the configured power supply.

● 1 x RG-PA600I-P-F: 370 W

● 2 x RG-PA600I-P-F: 740 W

● 1 x RG-PA1000I-P-F: 740 W

● 2 x RG-PA1000I-P-F: 1480 W, a maximum output of 1440 W over 48 ports (30 W x 48)

Energy saving

Supported
