• 802.11ac for up to 867Mbps on 5GHz wireless data rate
• 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation

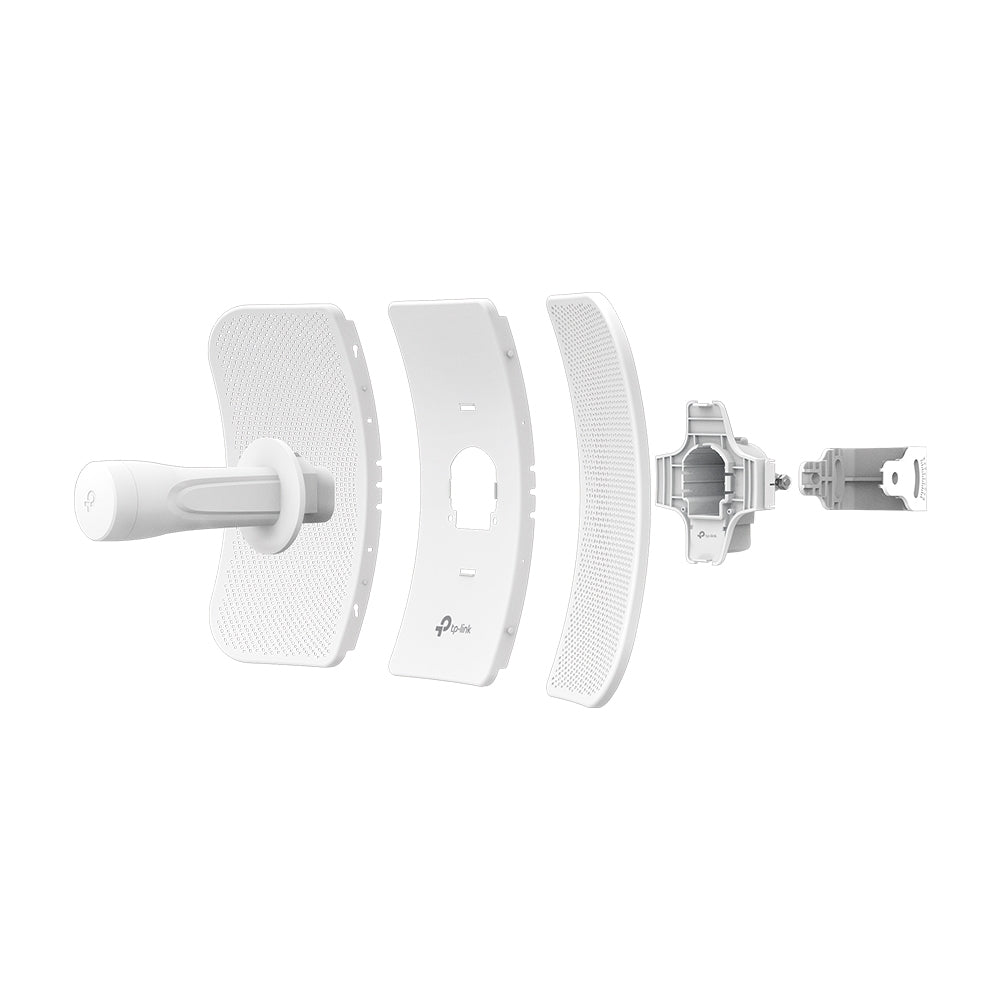

• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation
|
CARACTERÍSTICAS DE HARDWARE
|
| Procesador |
Qualcomm 750MHz CPU, MIPS 74Kc |
| Memoria |
128 MB DDR2 RAM, 16 MB Flash |
| Interface |
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button |
| Fuente de Alimentación |
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC |
| Dimensiones (W X D X H) |
366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Ganancia de Antena |
23 dBi |
| Cobertura de Antena |
9° (Azimuth)/7° (Elevation) |
| Protección |
15 KV ESD Protection
6 KV Lightning Protection |
| Cercado |
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design |
|
CARACTERÍSTICAS INALÁMBRICAS
|
| Estándares Inalámbricos |
IEEE 802.11a/n/ac |
| Velocidades Inalámbricas |
Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic) |
| Frecuencia |
5.15–5.85 GHz |
| Potencia de Transmisión |
Max. 27 dBm (Adjustable power by 1dBm) |
|
CARACTERÍSTICAS DE SOFTWARE
|
| Configuracion De Red |
WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding |
| Configuraciones Inalámbricas |
Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP |
| Administración |
Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server |
| Herramientas de sistema |
Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment |
| Optimizaciones a Nivel de Sistema |
Optimized IGMP Snooping / Proxy for multicast applications |
|
POE ADAPTER FEATURES
|
| Dimensions(W x D x H) |
85.8×43.9×29.7 mm |
| Interfaces |
1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data) |
| Botón |
Remote Reset Button |
| Power Status LEDs |
Green |
| Input |
100-240VAC, 50/60Hz |
| Output |
24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Eficiencia |
>84.29% |
| Certifications |
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
|
Otros
|
| Certificacion |
CE, FCC, RoHS, IP65, IC |
| Contenidos del Paquete |
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide |
| Requisitos del Sistema |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Ambiente |
Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
