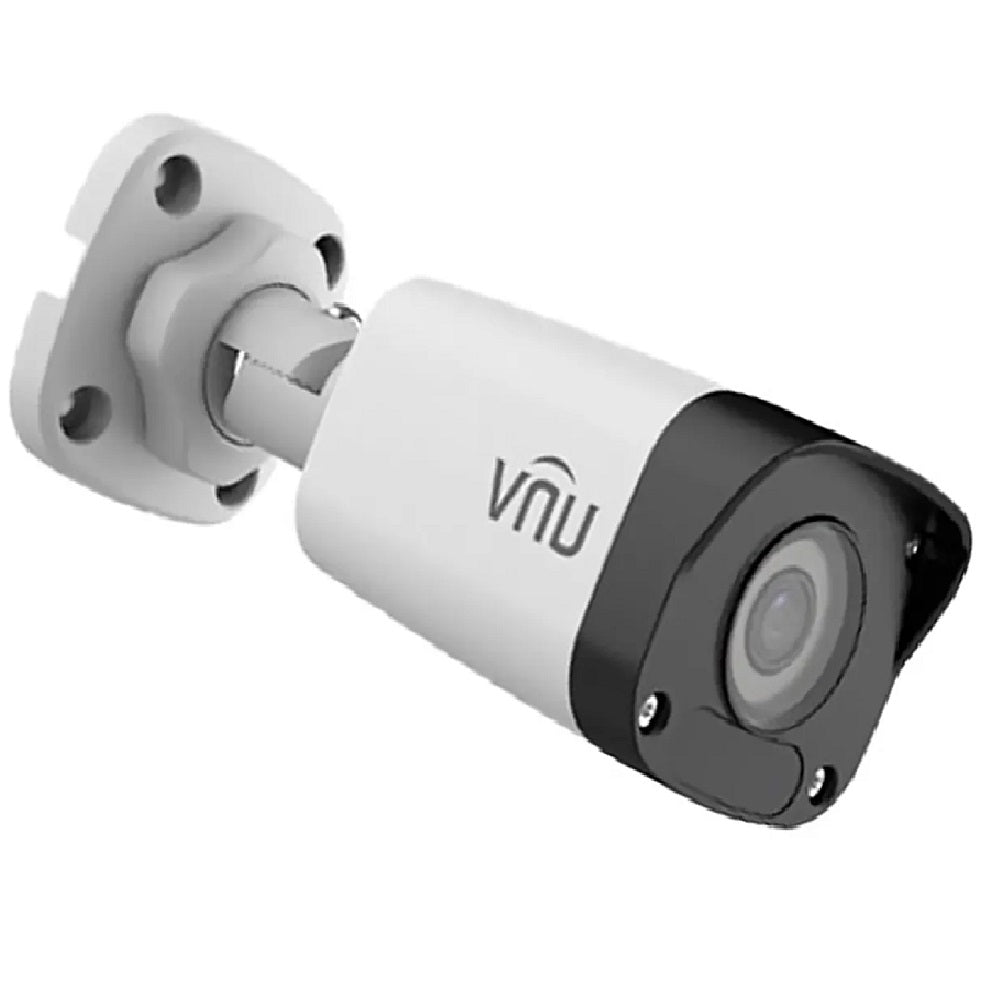

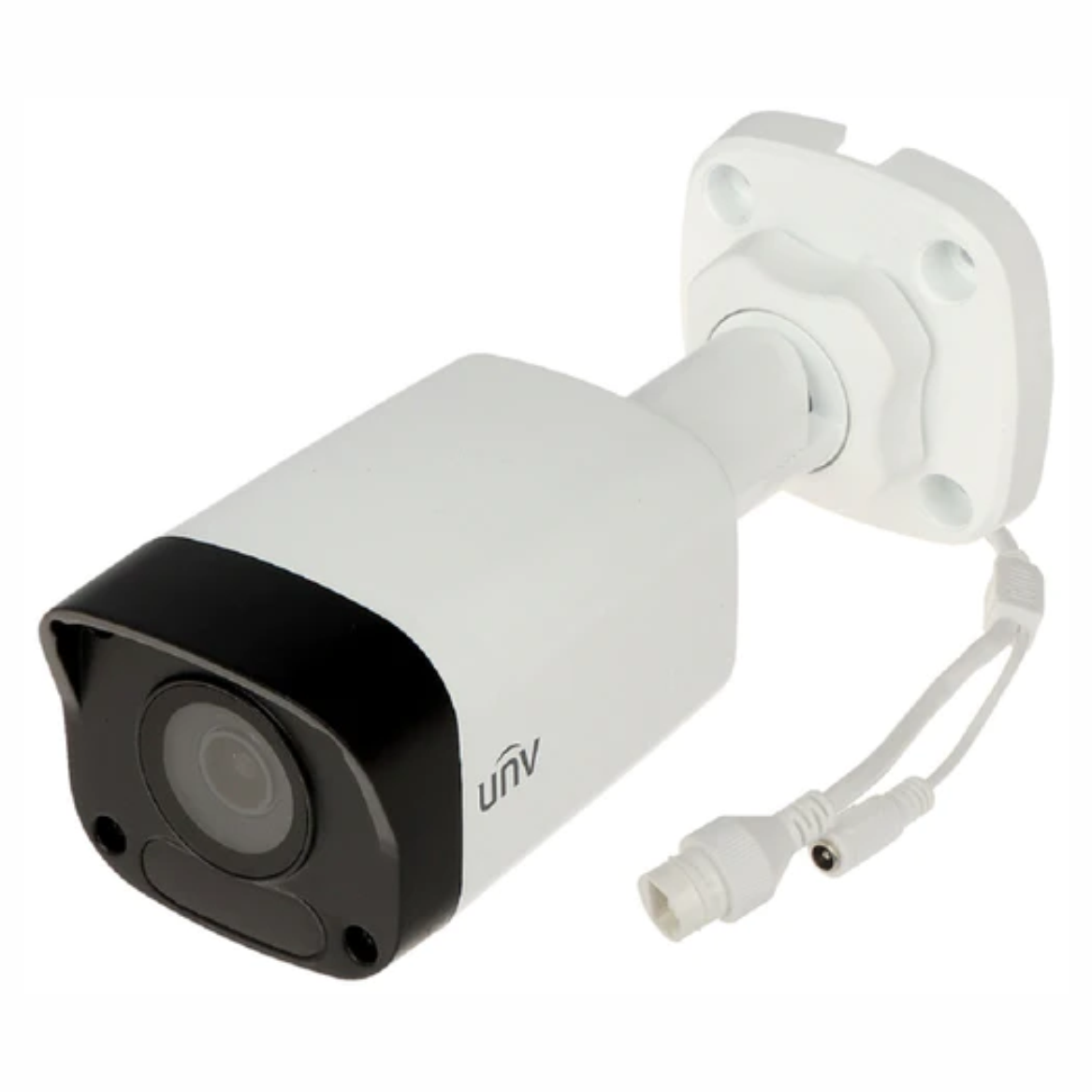

| IPC2122LB-SF28-A |
IPC2122LB-SF36-A |
IPC2122LB-SF40-A |
| Camera |
| Sensor |
1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N |
>52dB |
| WDR |
DWDR |
| Lens |
| Lens Type |
2.8mm ,3.6mm and 4.0mm @1.6, Fixed-focal |
| Lens Mount |
M12 |
| Angle of View (H) |
106.7° |
86.4° |
83.7° |
| Angle of View (V) |
57.1° |
43.6° |
44.6° |
| Angle of View (O) |
115.7° |
112.3° |
89.1° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
43.4 |
17.4 |
8.7 |
4.3 |
| 4.0 |
62.1 |
24.8 |
12.4 |
6.2 |
| Illuminator |
| IR Range |
Up to 30m (98ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264 |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~6 Mbps |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Supported |
| Flip |
Normal/Vertical/Horizontal/180° |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP |
| Compatible Integration |
API, SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |

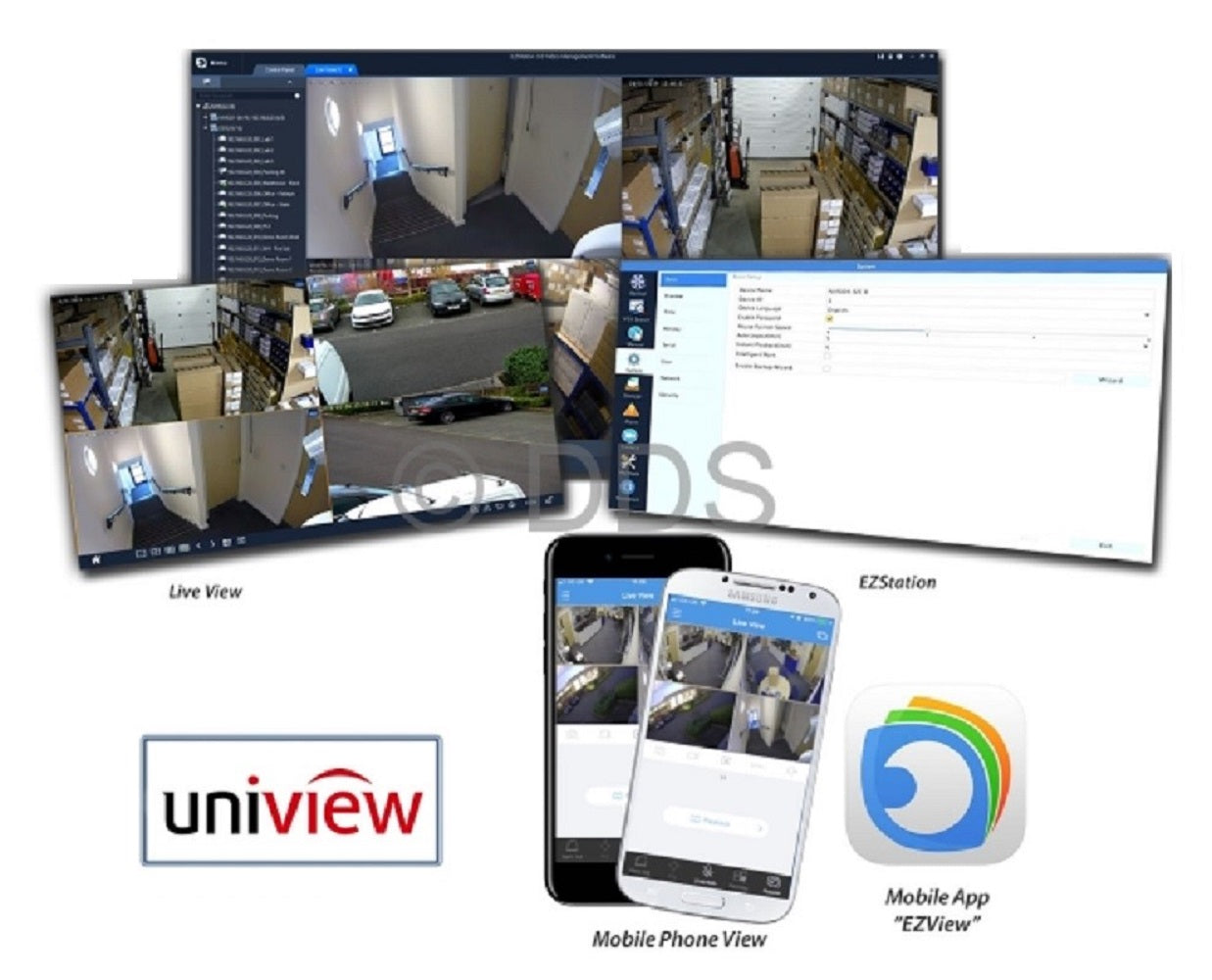

| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Interface |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Certification |
| EMC |
FCC: FCC Part 15 |
| Safety |
CE: EN 60950-1
UL: UL60950-1
IEC 60950-1 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5.5W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (L × W × H) |
161 × 63 ×62mm (6.4” × 2.5” × 2.4”) |
| Weight |
0.27kg (0.60lb) |
| Material |
Metal + Plastic |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
4KV |
| Reset Button |
N/A |
| Ingress Protection |
Ingression protection: IP67 |
