| Model |

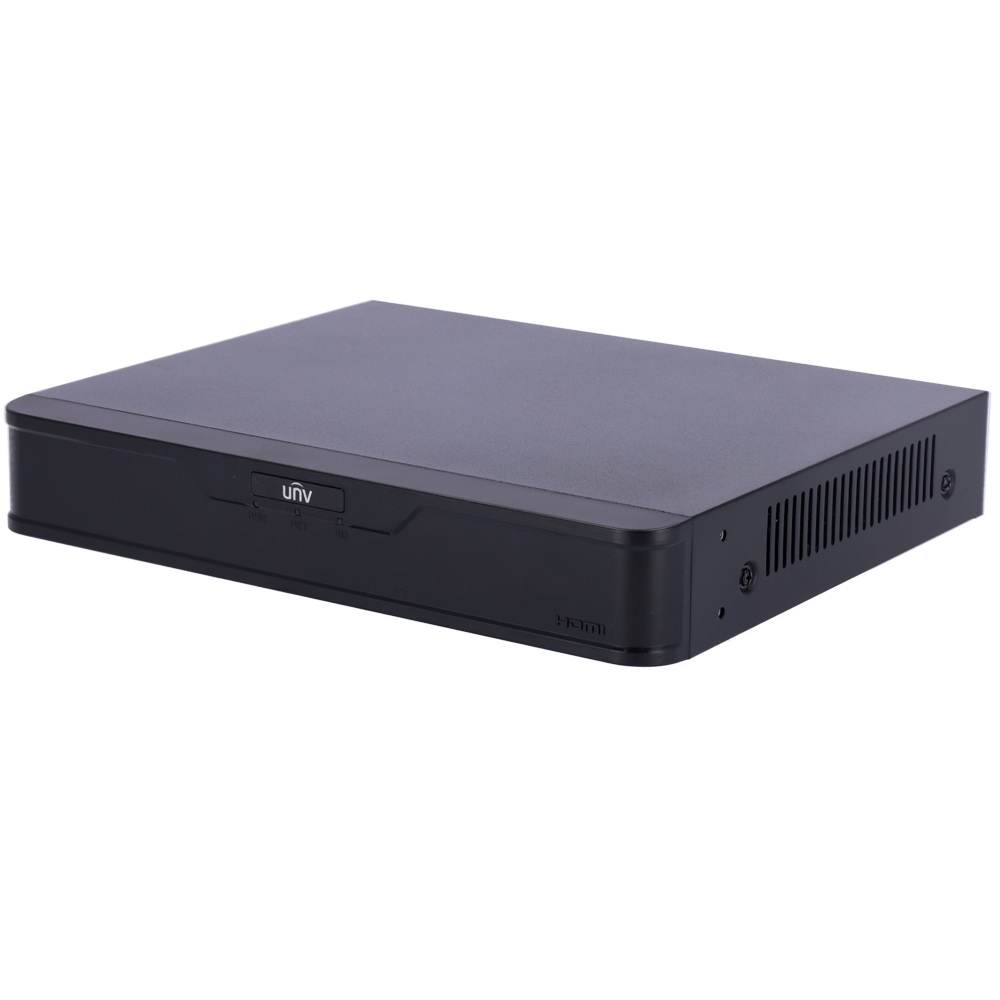

XVR301-16G3 |
| Video/Audio Input |
| Analog Video Input |
16-ch, BNC |
| IP Video Input |
8-ch(up to 16-ch after analog camera conversion) |
| Supported Analog Camera Types |
Support AHD input: 5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support TVI input: 5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support CVI input: 1080P@30fps
720P@30fps
Support CVBS input
|
| Audio Input |
1-ch, RCA |
| Audio Compression |
G.711U |
| Video/Audio Output |
| VGA Output |
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output |
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
HD:8-ch
SD:16-ch |
| Live view display |
HDMI/VGA: 1/4/6/8/9/16/25 |
| Two-way Audio |
1-ch, RCA |
| Snapshot |
| FTP/Schedule/Event Snapshot |
Schedule snapshot is not supported
16-ch snapshot, up to 704*576 resolution |
| Network |
| Incoming Bandwidth |
40Mbps (up to 56Mbps after all analog camera conversion) |
| Outgoing Bandwidth |
64Mbps |
| Remote Users |
128 |
| Protocols |
TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser |
IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows |
| Recording Resolution |
5MP Lite/4MP Lite /1080P Lite/720P/D1/CIF |
Recording
Frame Rate |
Main stream: |
Sub stream: |
| 5MP Lite@6fps |
D1@6fps |
| 4MP Lite@8fps |
D1@8fps |
| 1080P Lite@12fps |
D1@12fps |
| 720P@12fps |
D1@12fps |
| Audio Sample Rate |
8KHz,16 bit per channel |
| Audio Bit Rate |
64Kbps per channel |
| Decoding |
| Capability |
Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12
IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
| Hard Disk |
| SATA |
1 SATA interface |
| Capacity |
Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Smart Alarm |
| VCA Detection |
Ultra Motion Detection(UMD) for analog:8-ch |
| VCA Search |
Behavior Search |
| General Alarm |
| General Alarm |
Motion detection |
| Alert Alarm |
IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface |
Rear panel: 2 x USB2.0 |
| Serial Interface |
1 x RS485 |
| General |
| Power Supply |
12V DC
Power Consumption: ≤ 10 W( without HDD ) |
| Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) |
260mm ×226mm× 47mm (10.2" × 8.9"×1.8") |
| Weight ( without HDD ) |
≤1.1 Kg ( 2.42lb ) |
| Certification |
| Certification |
UL
CE
FCC
RoHS
WEEE |
